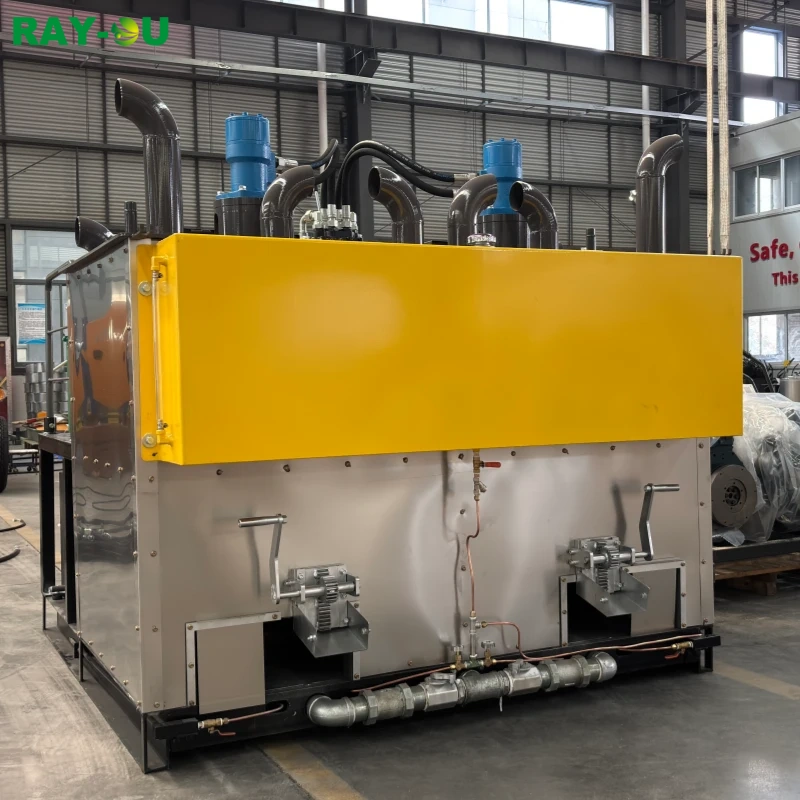

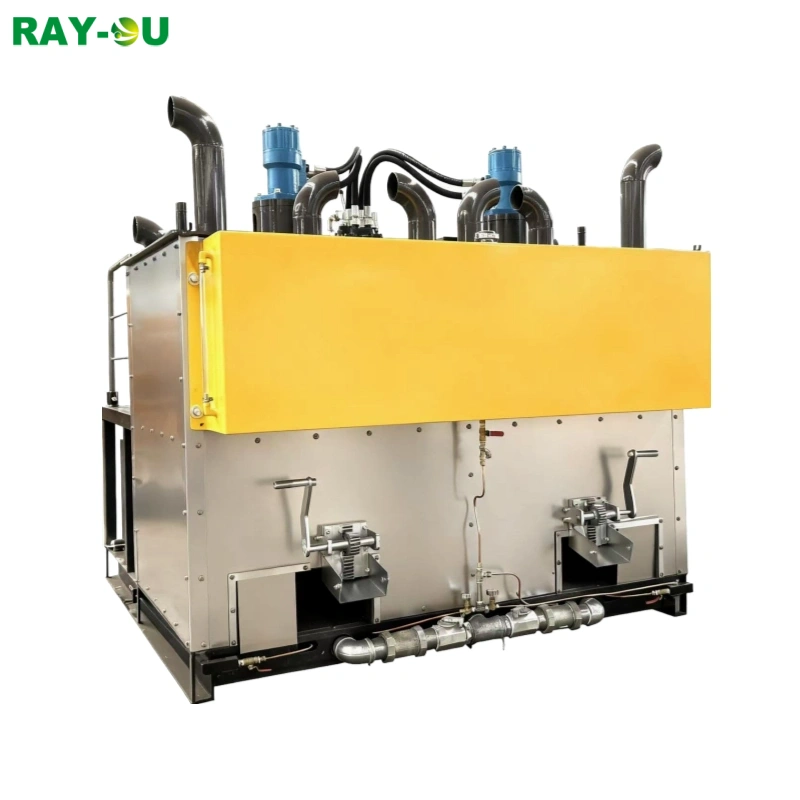

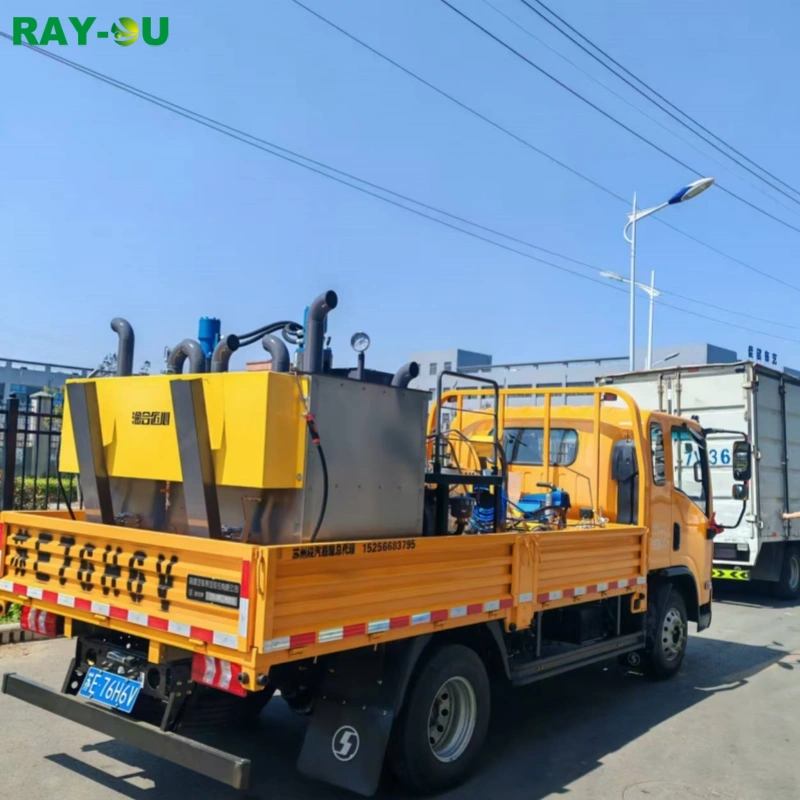

DCHP-1000DG/1200DG
ModelDCHP-1000DGDCHP-1200DG EngineChangchai ZS1105 18HP electric start water-
Contact →Model | DCHP-1000DG | DCHP-1200DG |
Engine | Changchai ZS1105 18HP electric start water-cooled diesel engine | |
Heating stove | Dual-fuel diesel/LPG stove | |
Mixing system | Integrated hydraulic control valve, forward/reverse mixing with overload protection | |
External structure | Frame structure, 1.2mm stainless steel outer shell | |
Internal structure | Two independent enclosed combustion chambers are equipped with thermal insulation layers | |
Paint tank | 2 x 500kg capacity, suspended installation | 2 x 600kg capacity, suspended installation |
Bottom material | 10mm high-carbon alloy steel | |
Hydraulic oil tank | 70L capacity; use 46-grade anti-wear hydraulic oil | |
Diesel tank | 130L with level gauge | |
Dimension(LPG) | 1900×1750×1550mm | 1900×1750×1650mm |
Net weight | 1200kg | 1250kg |
