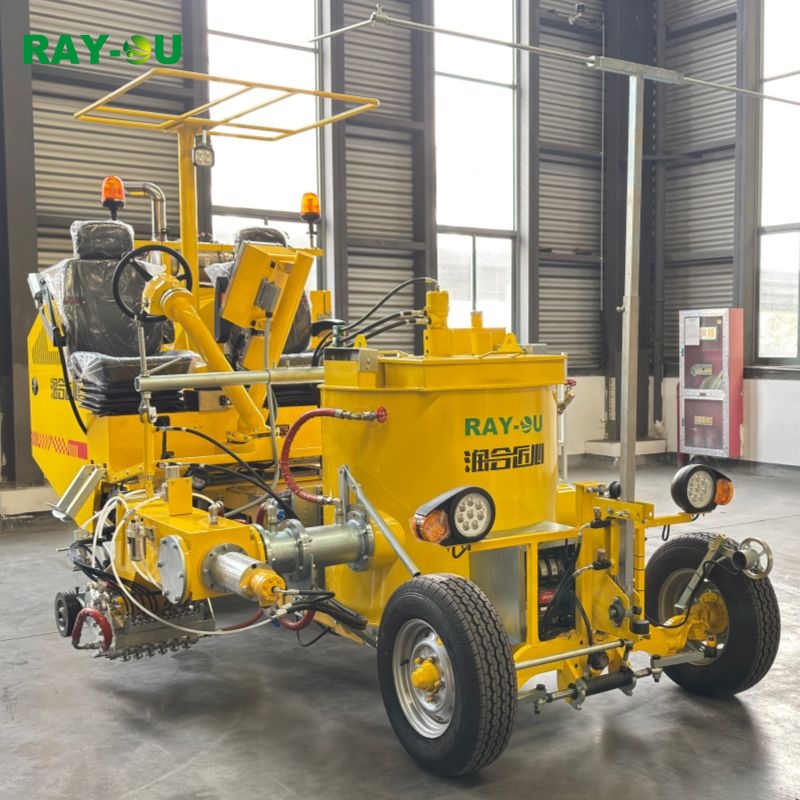

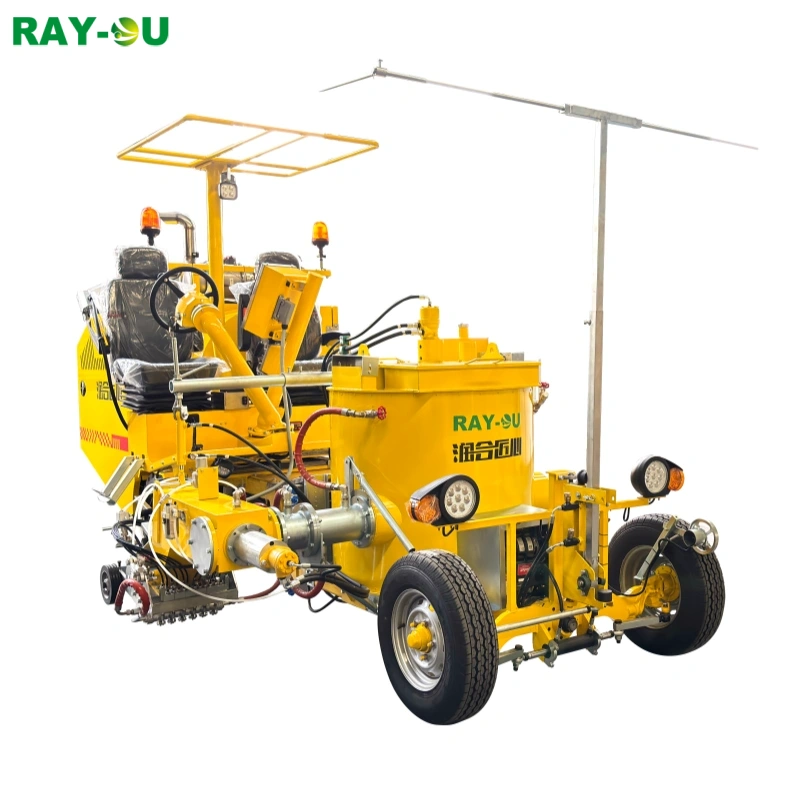

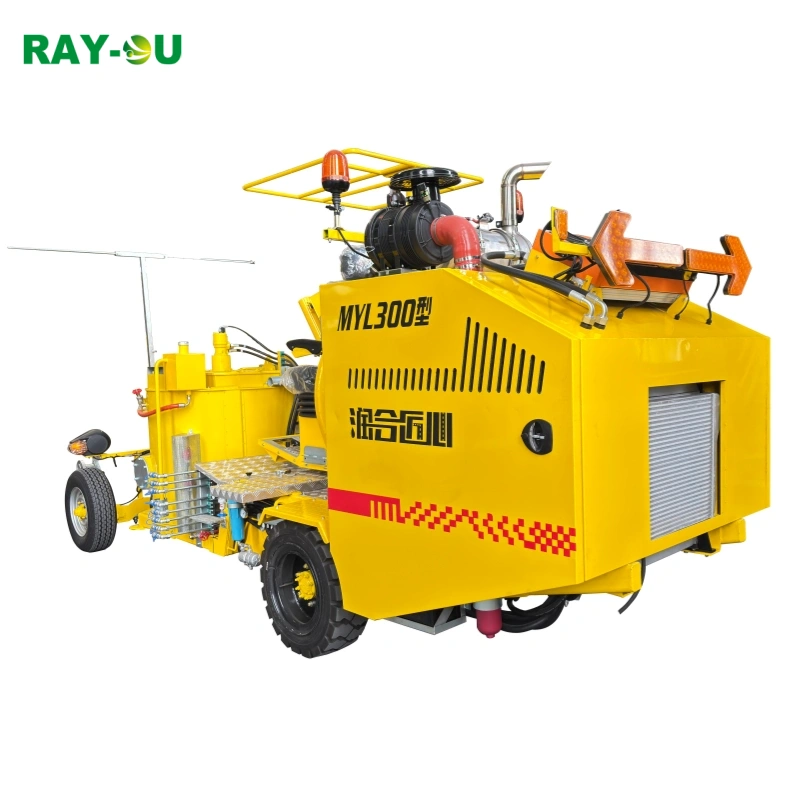

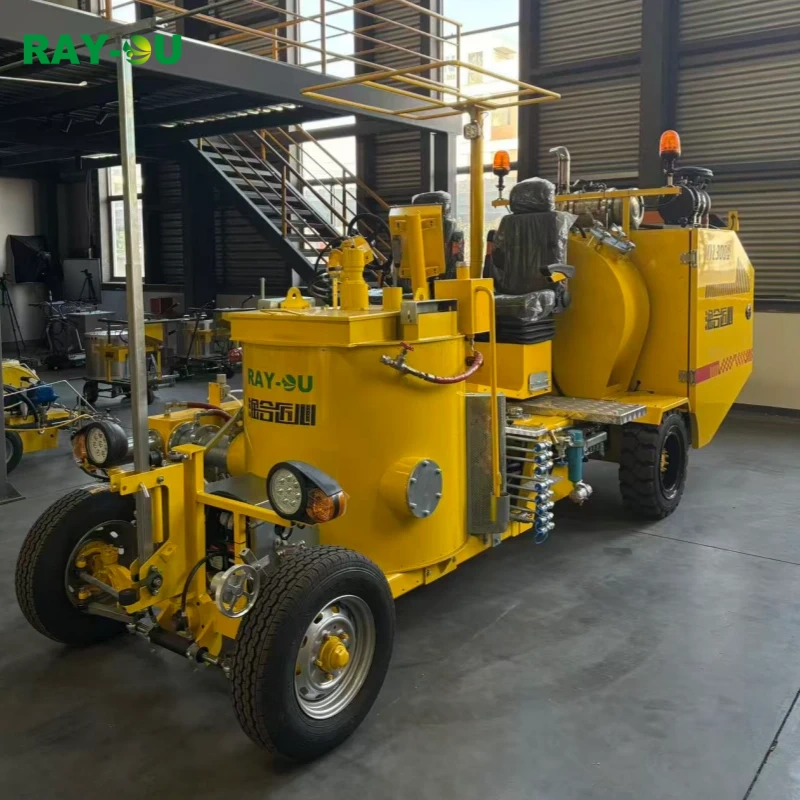

MYL-300E

  Hydraulic system

  Danfoss

  Travel speed

  0-10km/h

  Max gradeability

  11°

  Air compressor

  0.49m³/min at 0.8MPa

  Heating method

  Beckett diesel burner, thermal oil circulation insulation, automatic temperature control

  Paint tank capacity

  300L(500kg)

  Glass bead tank

  150L pressurized tank

  Line width

  Standard 30cm

  Each 5cm section constitutes one control unit, totaling 6 control units

  Marking mode

  Flat lines, checkerboard lines, staircase lines, piano lines,

  and other pre-programmed markings

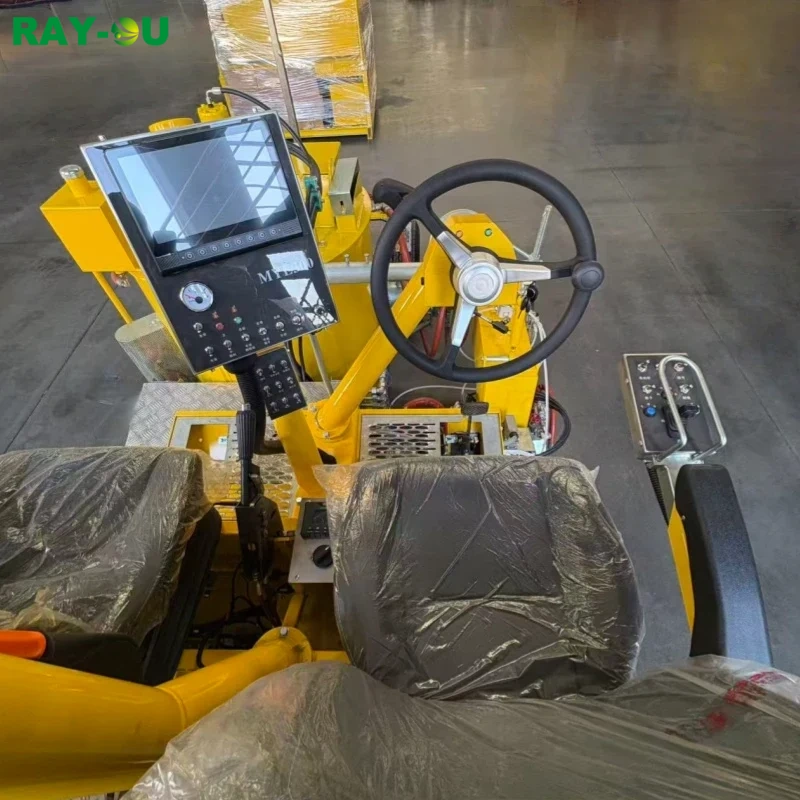

  Marking setting

  Select the line mode on the computer panel and set the marking parameters

  Construction efficiency

  300m²/h

  Dimension(LWH)

  5700×2200×2750mm

  Net weight

  3700kg
