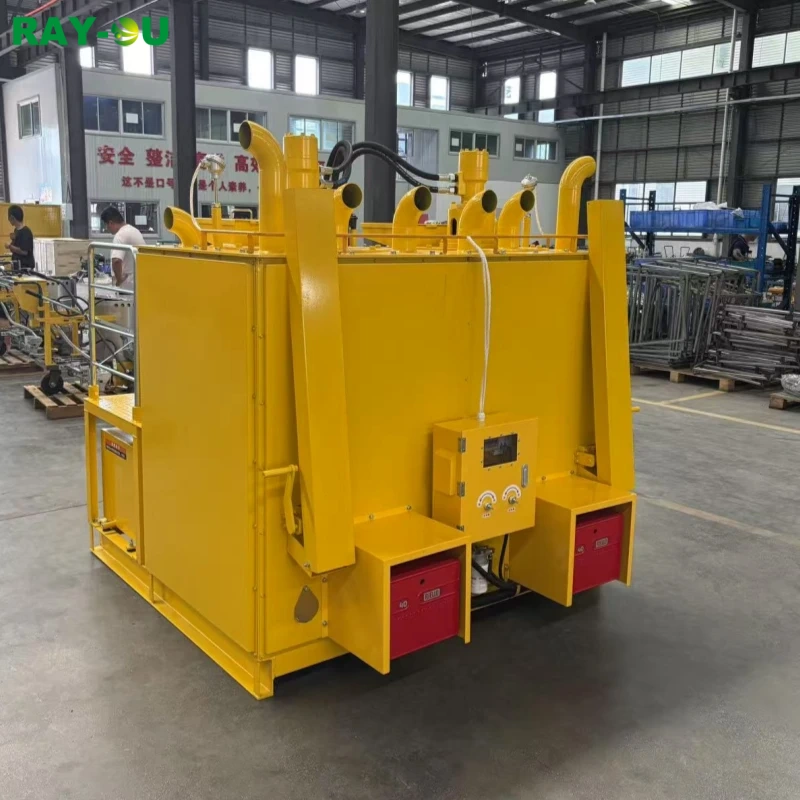

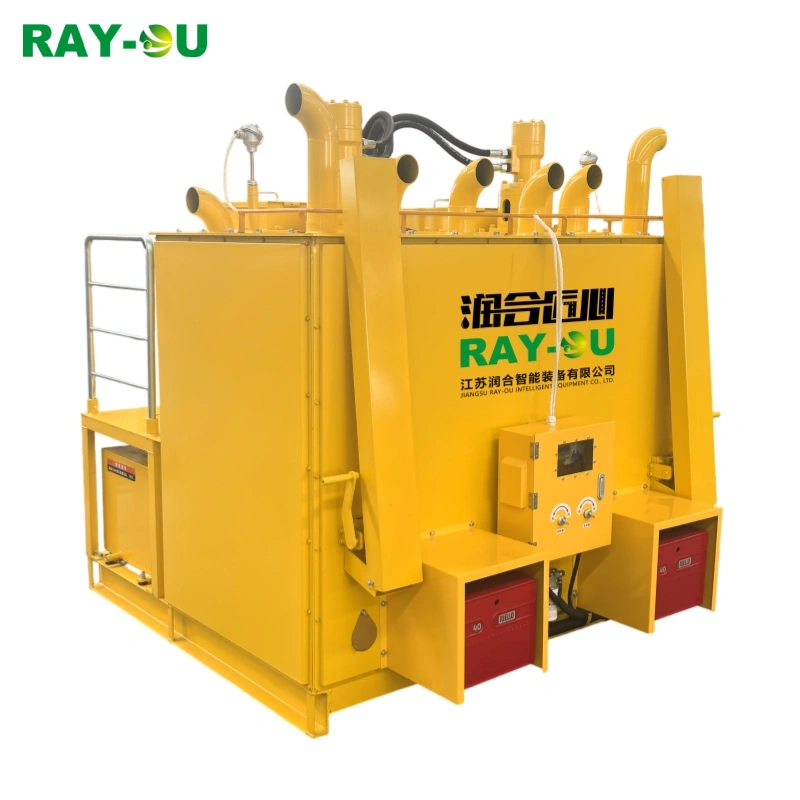

DCHP-1200D/1500D/2000D
ModelDCHP-1200DDCHP-1500DDCHP-2000D EngineChangchai electric start water-cool
Contact → Model | DCHP-1200D | DCHP-1500D | DCHP-2000D |
Engine | Changchai electric start water-cooled diesel engine | ||
Engine model | ZS-1105 18HP | ZS-1115 22HP | ZS-1115 22HP |
Heating burner | Italian Riello diesel burner | ||

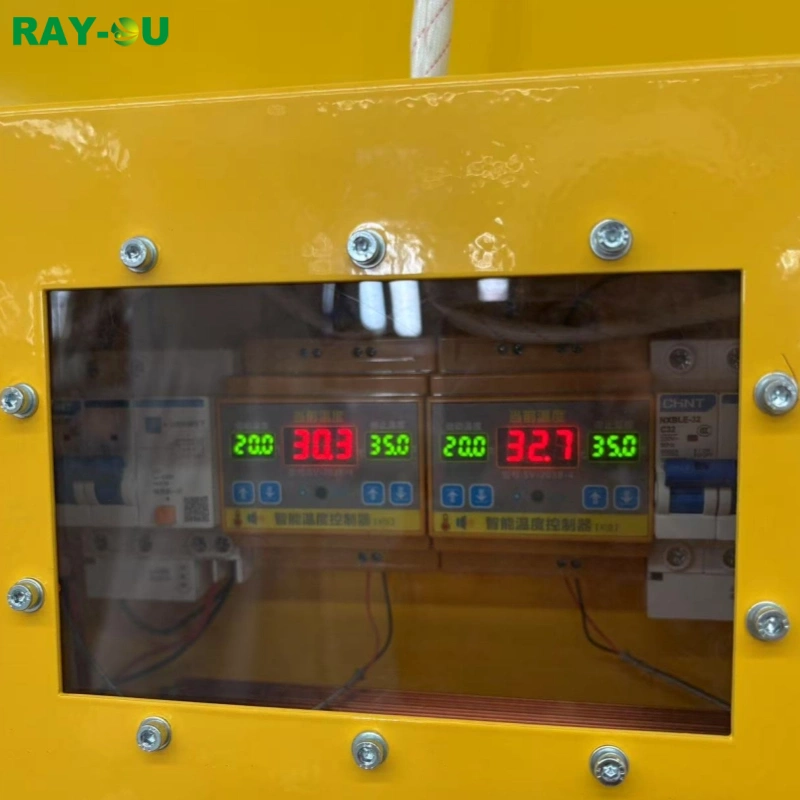

Temperature control | Paint temperature sensor measurement with precise computerized temperature regulation | ||
Electrical system | 220V AC with leakage protection device | ||
Onboard battery | 12V/100Ah lead-acid battery, charged by generator | ||
Mixing system | Integrated hydraulic control valve, forward/reverse mixing with overload protection | ||
Internal structure | Two independent enclosed combustion chambers are equipped with thermal insulation layers | ||
Paint tank capacity | 600kg ×2 | 750kg×2 | 1000kg×2 |
Bottom material | 16mm high-carbon alloy steel | ||
Hydraulic oil tank | 70L | 70L | 120L |
Diesel tank | 146L with level gauge | 146L with level gauge | 165L with level gauge |
Dimension(LWH) | 1950×1750×1850mm | 1950×1750×1950mm | 2410×1950×1950mm |
Net weight | 1700kg | 1850kg | 2000kg |
